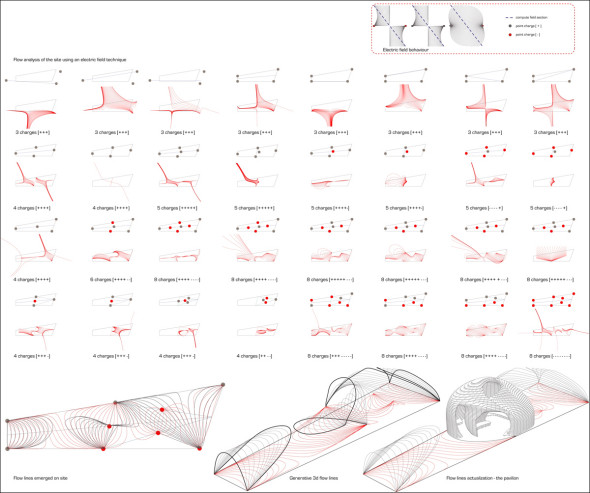

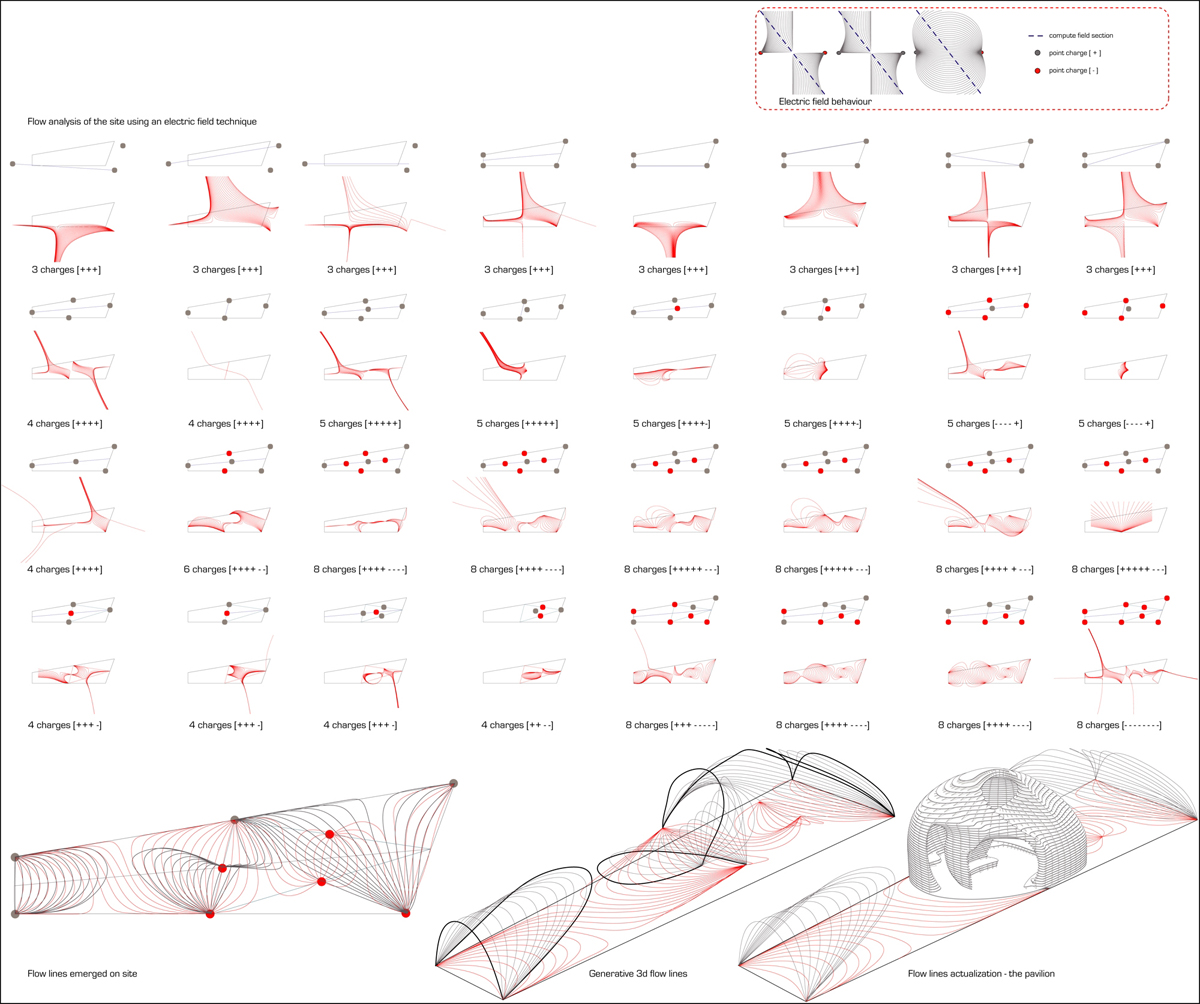

We began by exploring the flows on site by supposing that the movement of people could be approached as the movement of particles in an electric field. We placed a number of positive and negative charges on site and run an electric field simulation software to explore several flow configurations.
© Studiogriffa

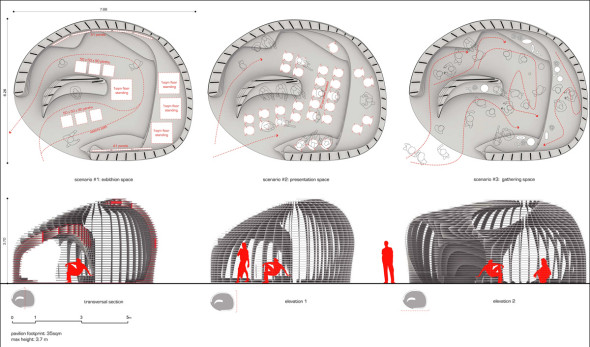

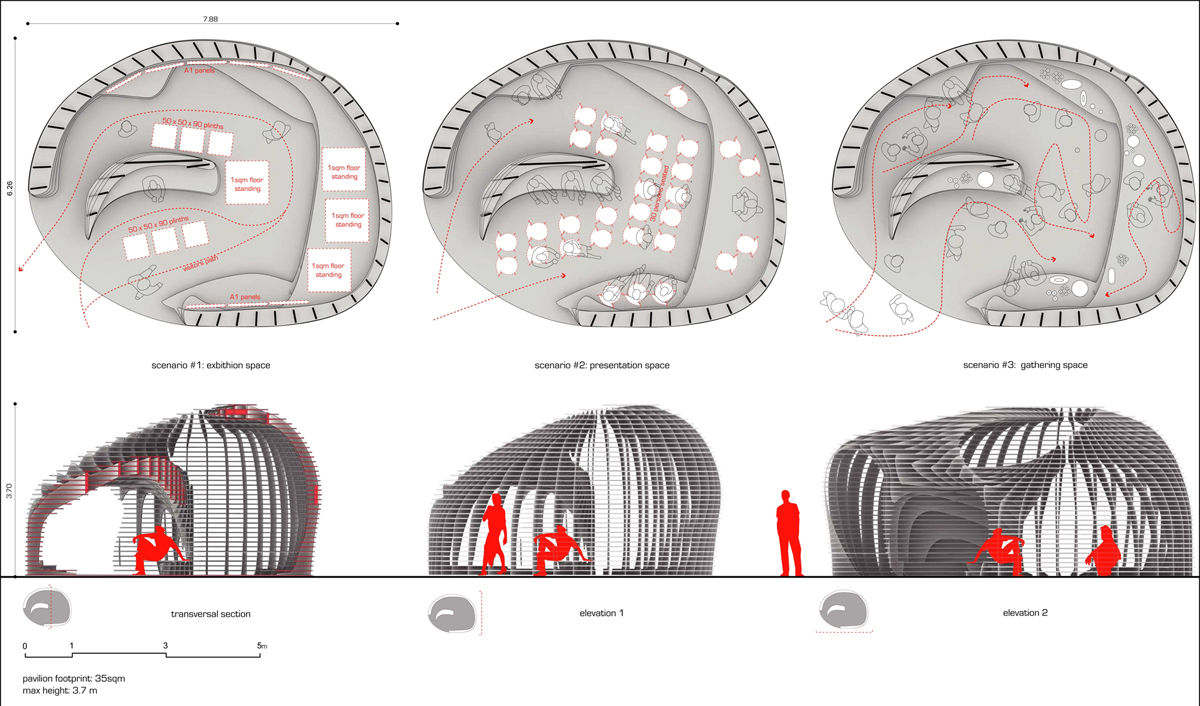

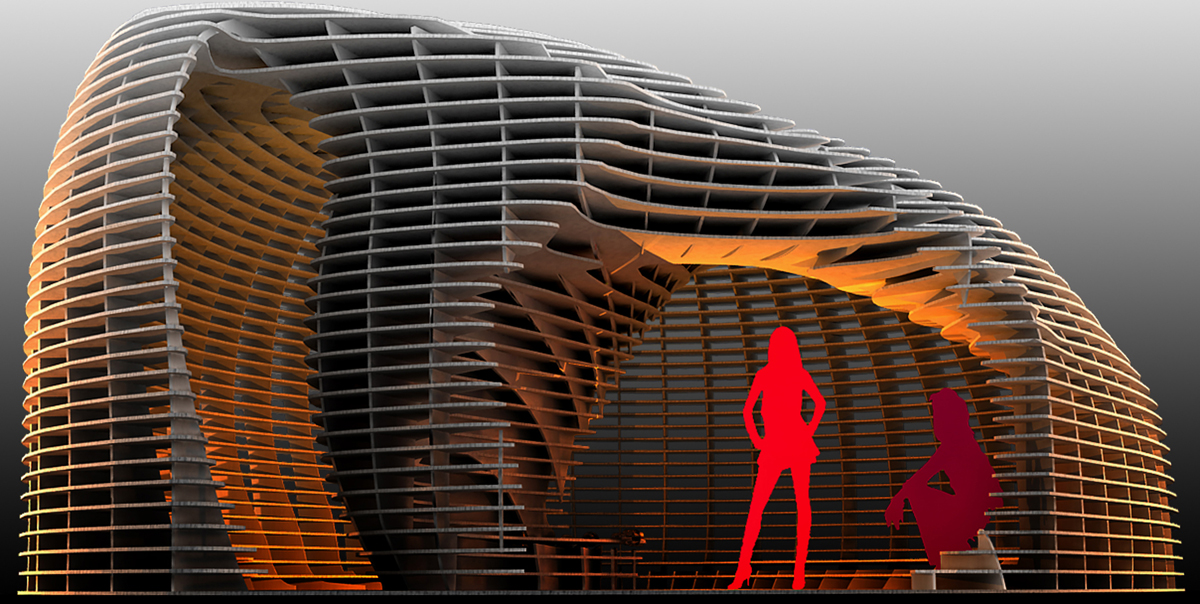

Once we found a configuration that seemed to work with the program of a35 m2 pavilion, we built a 3d space envelope of that field. We then cut the envelope in 35 horizontalslices and 50 vertical fuses, obtaining a series of surfaces with a precise geometry. We kept the horizontal surfaces as continuous layers, while the vertical ones were reduced to connection elements between horizontal layers.
© Studiogriffa

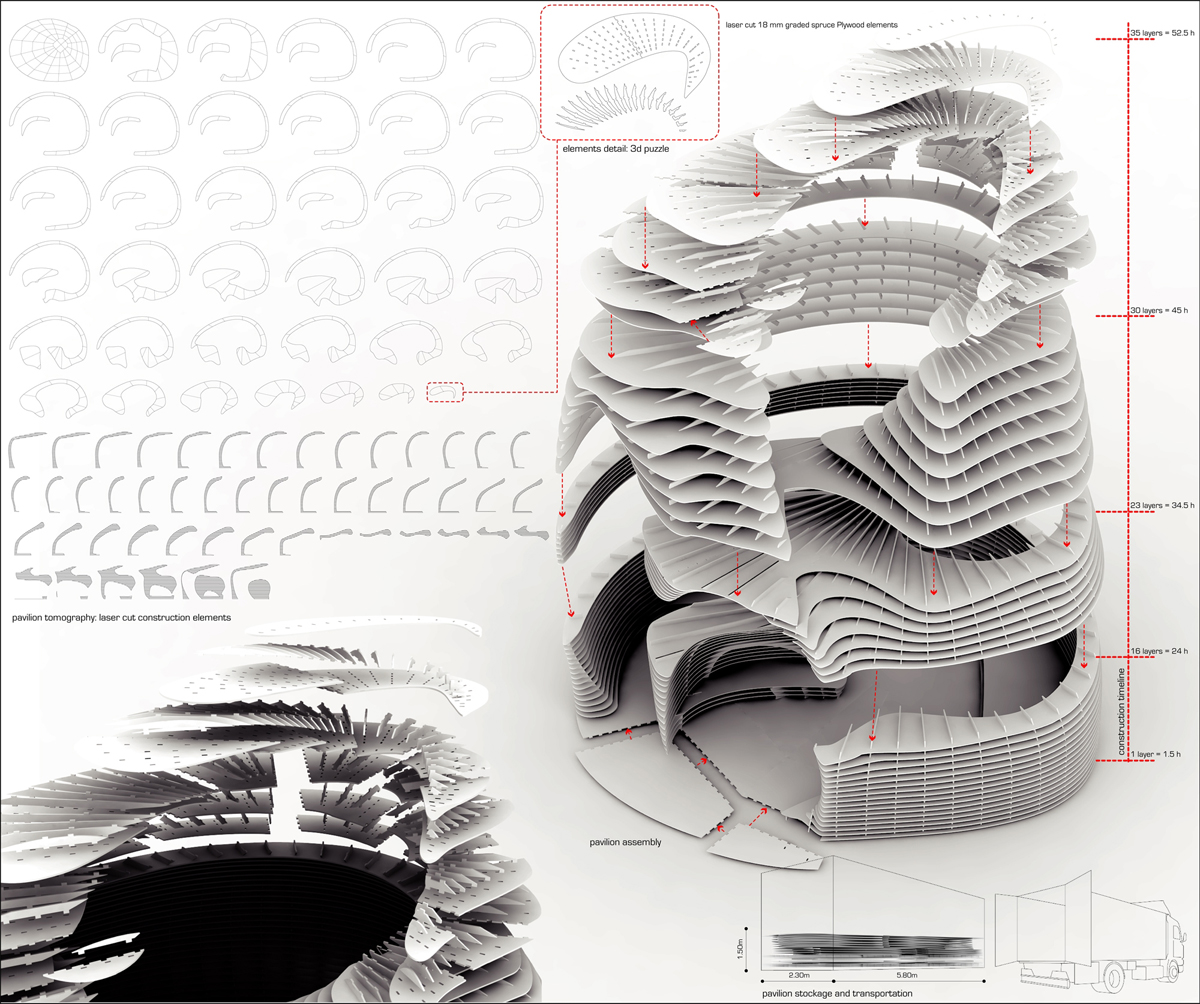

We then worked on the shape of the single 18 mm plywood laser cut elements in order to obtain a structure that could work as a 3d puzzle with no need of screws or any other external joint. A pavilion tomography optimized on the dimensions of the 18mm panels allows to reduce material waste.
© Studiogriffa

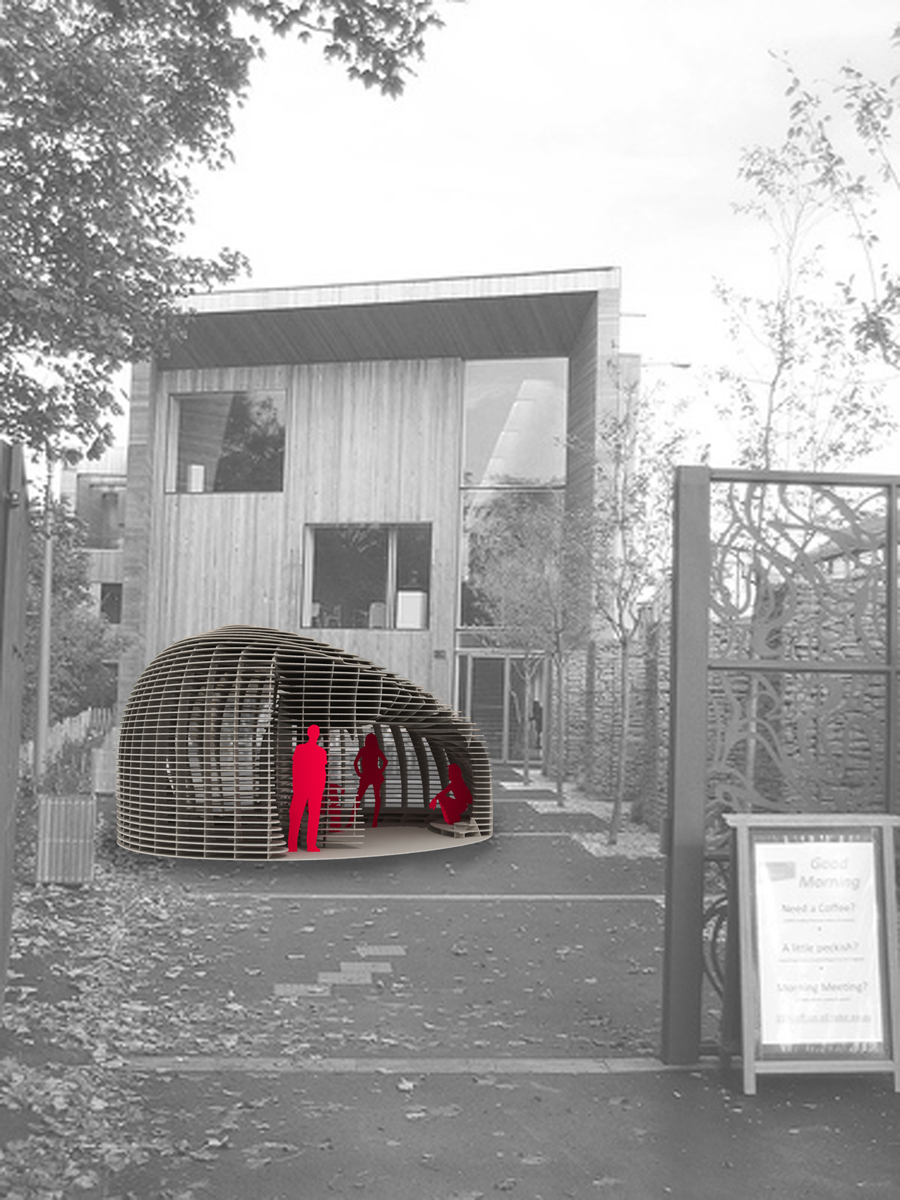

We considered a construction time of 1.5 hours per complete layer, totalizing less than 60 hours to complete the construction.
